Most LED projects start small—a strip under a desk, maybe some accent lighting behind a TV. Mine started there too. What began with basic WLED setups controlling a few hundred pixels eventually led to 2,760 individually addressable LEDs arranged in four concentric rings spanning 12 feet, installed on the ceiling of a friend's event venue. The journey from beginner to pushing a Pixelblaze controller to its technical limits taught me more about large-scale LED art than any tutorial could.

The Learning Curve

I didn't start here. Six months ago, I was figuring out how to program individual LEDs with a basic WLED setup—the kind of beginner project where you're excited just to make colors change. Once I got comfortable with that, I needed more complexity. I 3D printed geometric objects and practiced spatial mapping with Pixelblaze, learning how to make patterns flow across three-dimensional shapes. Each project taught me something specific: WLED taught me about addressable LEDs, 3D objects taught me about coordinate mapping, and this installation taught me about power distribution at scale.

The progression was deliberate. I wanted to understand 3D LED mapping—the technique where you assign each LED a coordinate in space so patterns can flow naturally across complex physical arrangements. Pixelblaze's mapping system lets you define coordinates for each pixel in world units between 0.0 and 1.0, creating a virtual coordinate space that patterns can use regardless of the physical wiring. For something as large as four 12-foot rings, I split each ring into eight data paths and wrote custom mapping code to make them behave as unified circles.

The Build: Technical Reality

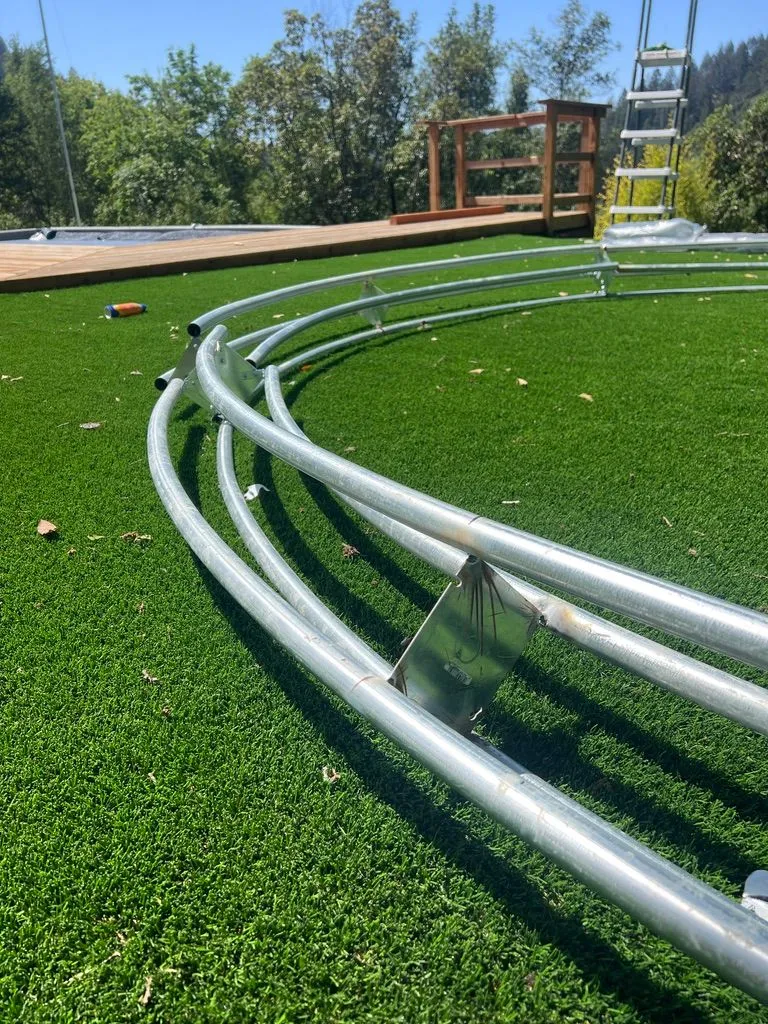

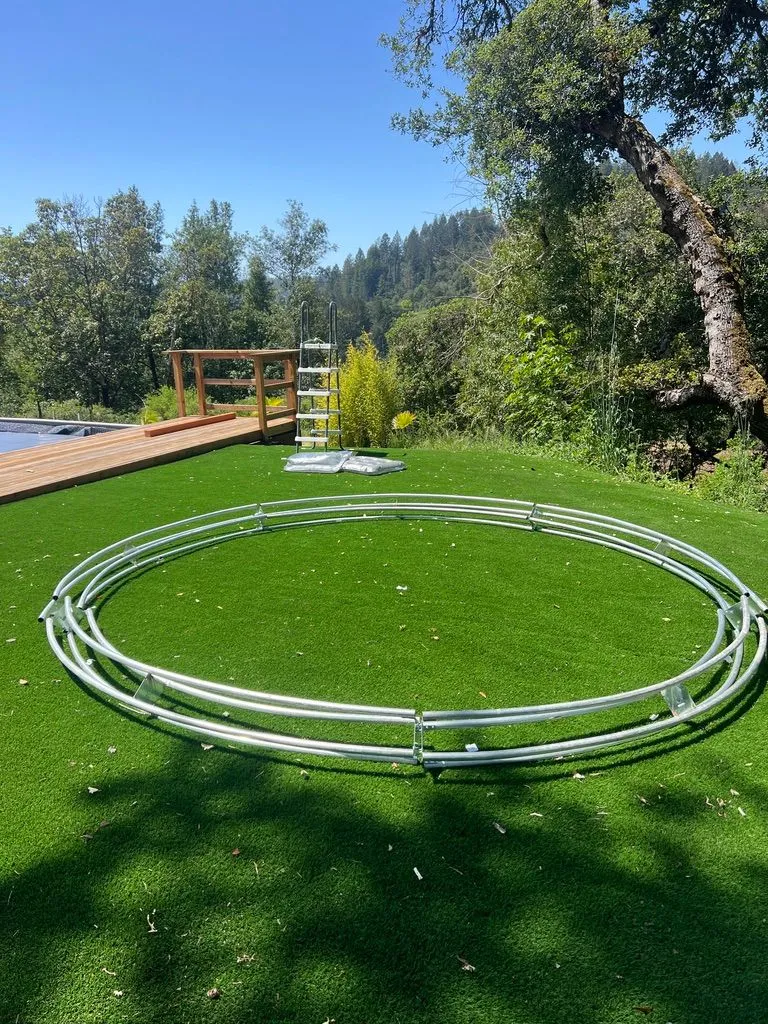

The physical structure consists of four parallel rings with diameters ranging from 11.4 feet to 12.6 feet, offset to form a 4.688-inch diamond pattern when viewed from the side. Using WS2812B addressable RGB LEDs at 60 pixels per meter, the total count reached approximately 2,760 LEDs. I built it in five equal 72-degree arc segments for easier installation and transport—critical when you're working on a roof.

The Pixelblaze V3 with Output Expander can theoretically drive up to 5,000 pixels total, but performance degrades with complexity. I split the installation across eight data outputs, keeping each channel under 435 LEDs to maintain reliable signal integrity. Even then, frame rates struggled—the controller generates roughly 48,000 pixels per second on average, but pattern complexity matters more than raw LED count.

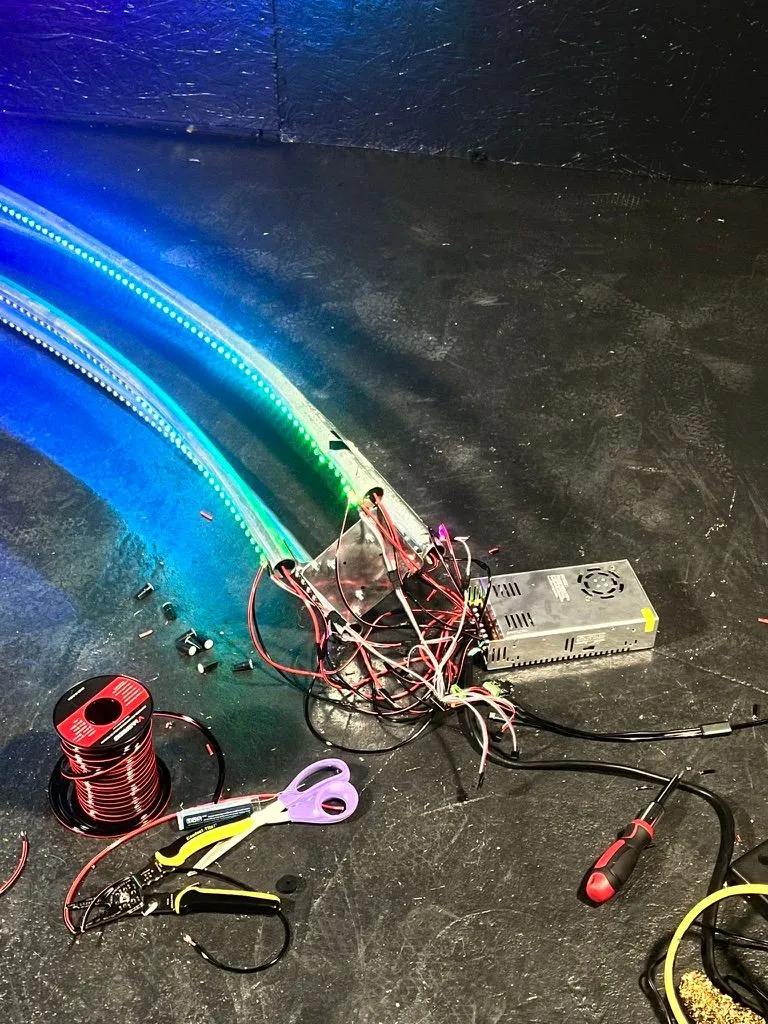

Power management proved more challenging than the data architecture. WS2812B LEDs draw 60mA each at full brightness, meaning my installation could theoretically pull 165 amps. I used three 5V 60A power supplies (180A total capacity) with power injection every 3-4 meters, running parallel power wires alongside the LED strips. Without proper injection, voltage drops from 5V to as low as 3.6V at the far end of long runs, causing color shifts and dim LEDs.

The Complications Nobody Mentions

The technical specifications tell one story; the actual build tells another. Working on a roof in a friend's event venue meant time constraints and awkward angles. Installing power injection points while suspended above the venue floor required more planning than the actual soldering. Testing patterns at ground level looked smooth; viewing them from 20 feet below revealed frame rate issues that weren't apparent during development.

Pixelblaze hit its limits faster than expected. Complex 3D patterns that worked perfectly on my test setup stuttered when scaled to 2,760 LEDs. The controller's advertised capability and real-world performance diverge significantly with pattern complexity—simple gradients run fine, but intricate mathematical patterns drop below acceptable frame rates. This is where I learned I'd reached the platform's ceiling. Next time, I'll need something more powerful, though figuring out what that is remains an open question.

The most valuable lesson came from an unexpected source: AI tools. Rather than spending days working through power calculations and constraint analysis manually, I used ChatGPT to verify voltage drop formulas, calculate current requirements, and work through data signal limitations. Breaking the project into discrete problems—power distribution, data signal integrity, coordinate mapping, physical assembly—made an overwhelming task manageable. The AI didn't do the work, but it accelerated the problem-solving process significantly.

Why This Matters

This project cost roughly $1,000 in parts and took a few weeks of intermittent work. The budget wasn't trivial, but it wasn't prohibitive either. What made it possible wasn't advanced electronics knowledge or years of experience—it was systematic problem-solving and modern tools. Six months ago, this installation would have seemed impossibly far away. Breaking it into achievable steps closed that gap.

The frame rate limitations are real, and I've reached the point where Pixelblaze can't deliver what I need next. But that's the point: understanding a tool's limits only comes from pushing against them. The next installation will require different hardware, different techniques, different solutions. That's not a failure of this project—that's the learning curve working as intended.
